Pressure Gauge - Linea PB

Pressure Gauge - Linea PB


Measured in Bars, the Linea PB features a manometer Pressure Gauge which utilizes two dials to accurately display the live pressure reading of the steam and brew boilers.

Idea
Tech Tip! It is important to not only identify the two unique pressures but to also understand the gauge characteristics. This provides the user with a heads up reading of the pressure status of their machine as well as provide real time feedback of any anomalies which may occur.

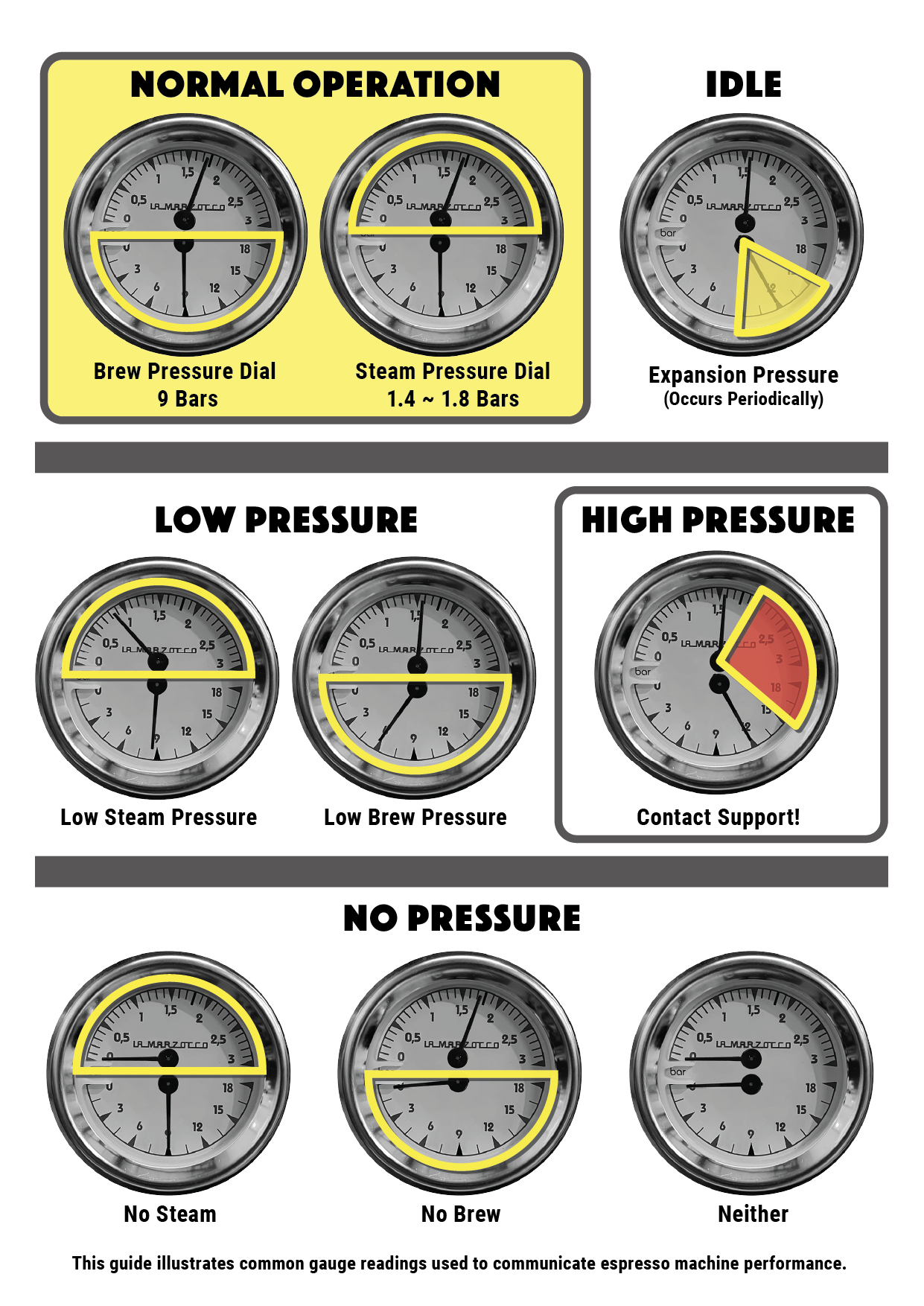

While straightforward, there are several key features on the gauge face to understand while operating the espresso machine:
  1. Steam Pressure
    1. Set within the menu, steam dial reads live pressure within the steam boiler.
      1. ~1.5-1.8 bars.
    2. Top half of gauge face.
  2. Brew (Espresso) Pressure
    1. Adjusted at the pump, brew dial reads pressure supplied through the brew hydraulic circuit.
      1. Adjust Pump Pressure
    2. Lower half of gauge face.
