Drip & Cup Tray Cleaning - Linea PB
As part of Routine Cleaning Procedures & Care, it is recommended to maintain clean drip and cup tray panels. Each tray features liners to catch and funnel waste liquid away from the espresso machine.

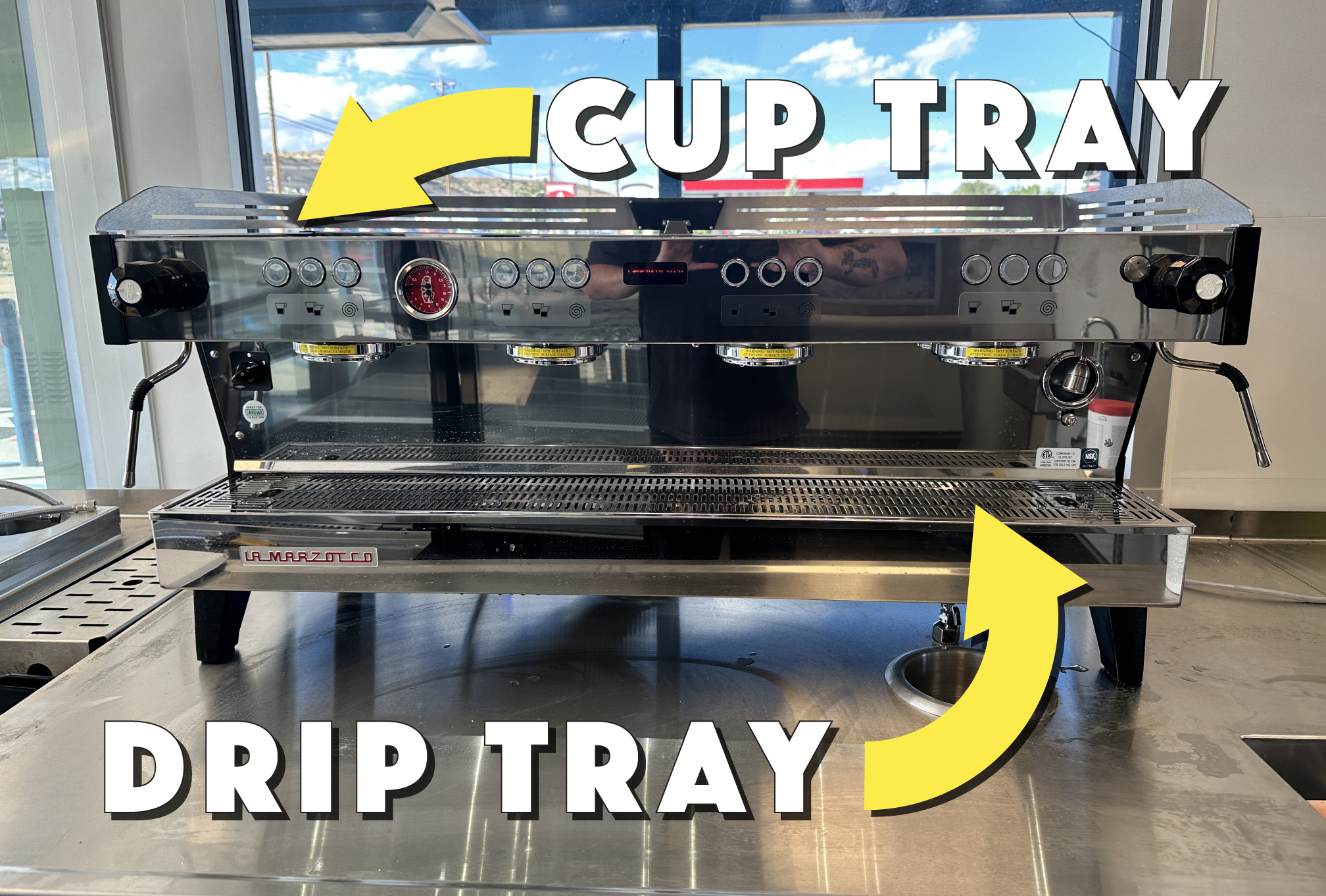

Two group panel example.

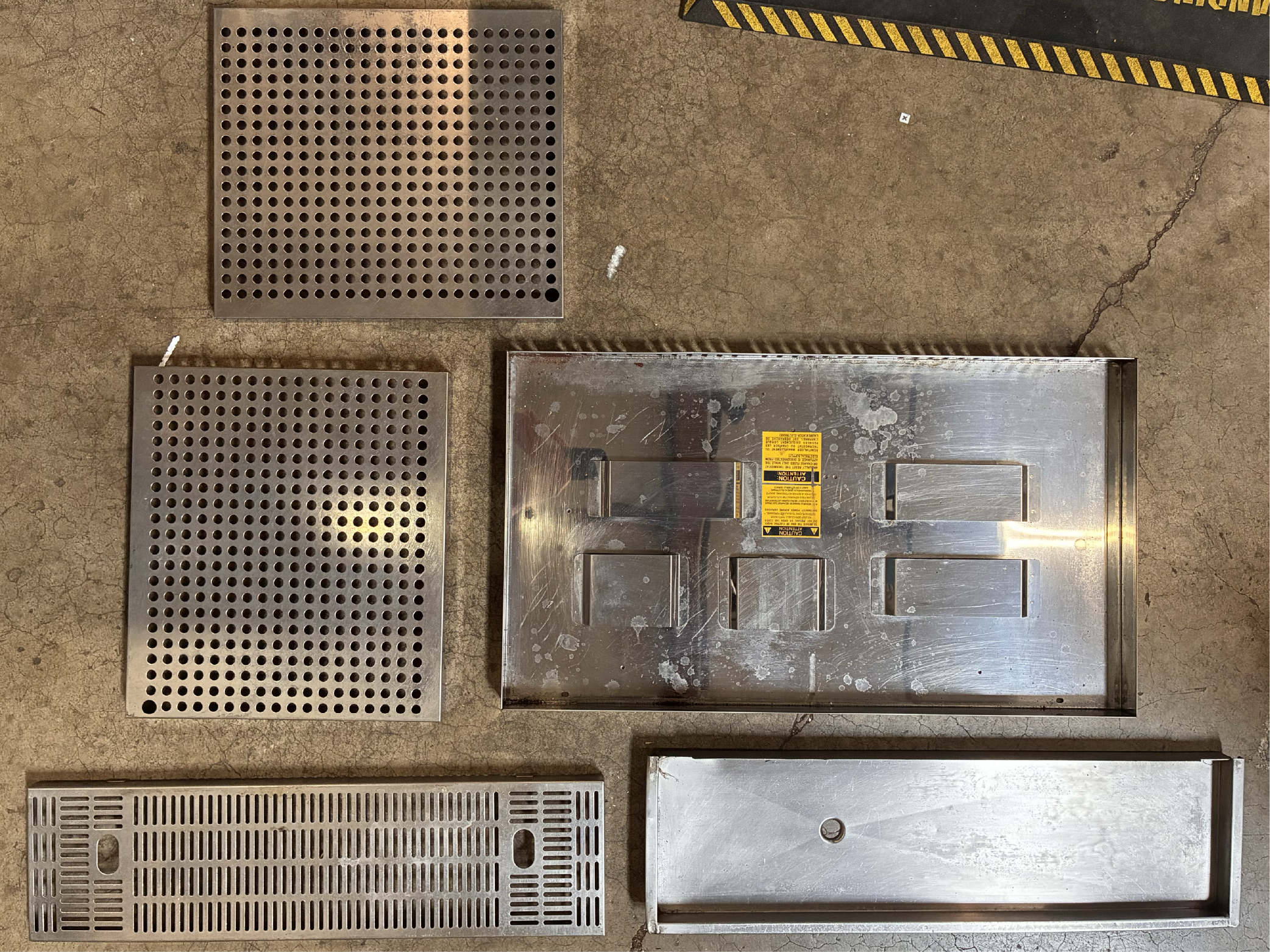

Tech Tip! Cup & drip tray grates and liners are stainless steel and may be easily cleaned in the sink using dish soap! Always completely dry cup tray panels after cleaning!
Drip Tray & Drain Basin

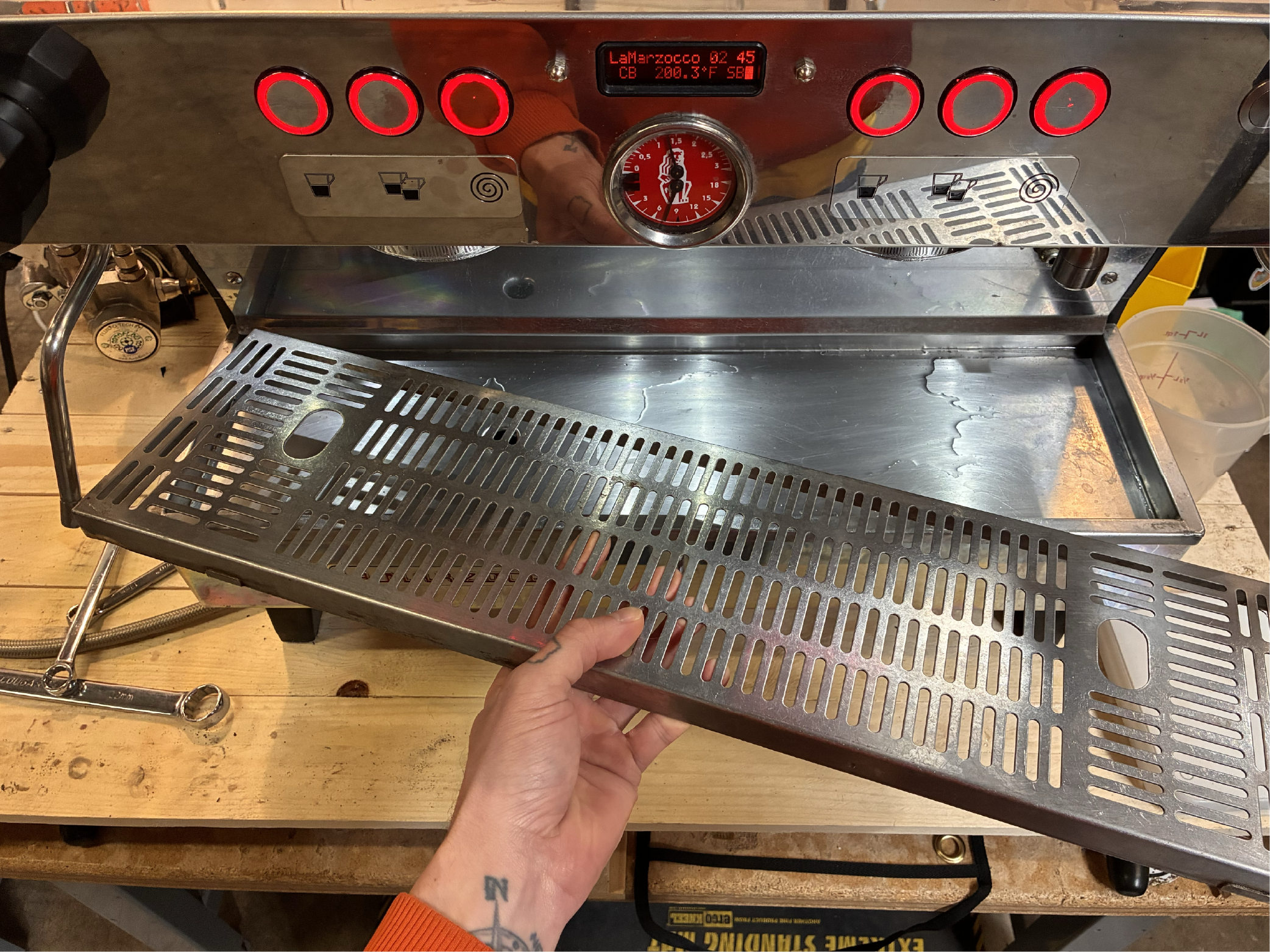

Easy to remove and easy to clean, the drip tray grate and liner may be slid out from the machine for cleaning.
- Remove perforated grate.
- Followed by liner.
- Liner may be cleaned while still on the machine!
While the drip tray is the main catch basin for liquid waste. It is possible to clog or overflow the liner with too much 'foamy and viscous' liquids accumulating underneath the perforated grate. When this occurs, remove the grate and simply pour (slowly) hot water from the right side of drip tray, wipe with a wet towel, and allow to drain.

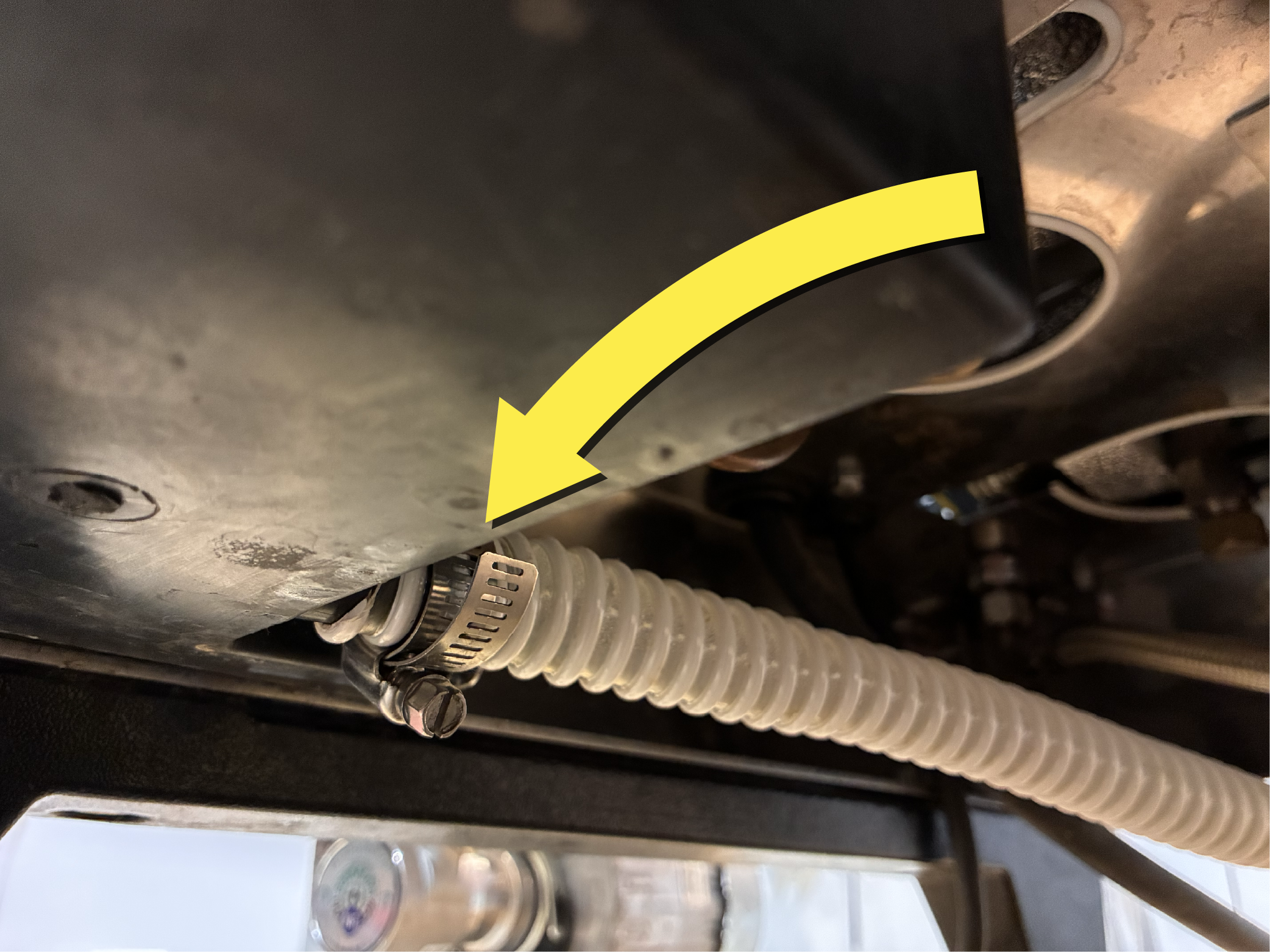

Liquids not draining properly or leaks are observed underneath the machine? Inspect the catch basin (highlighted in yellow below), drain hose, and contact support!
Cup Tray & Liner
The cup tray, composed of perforated grates and a liner are designed to store an arrangement of dry items and act as ventilation to maintain optional machine functionality.

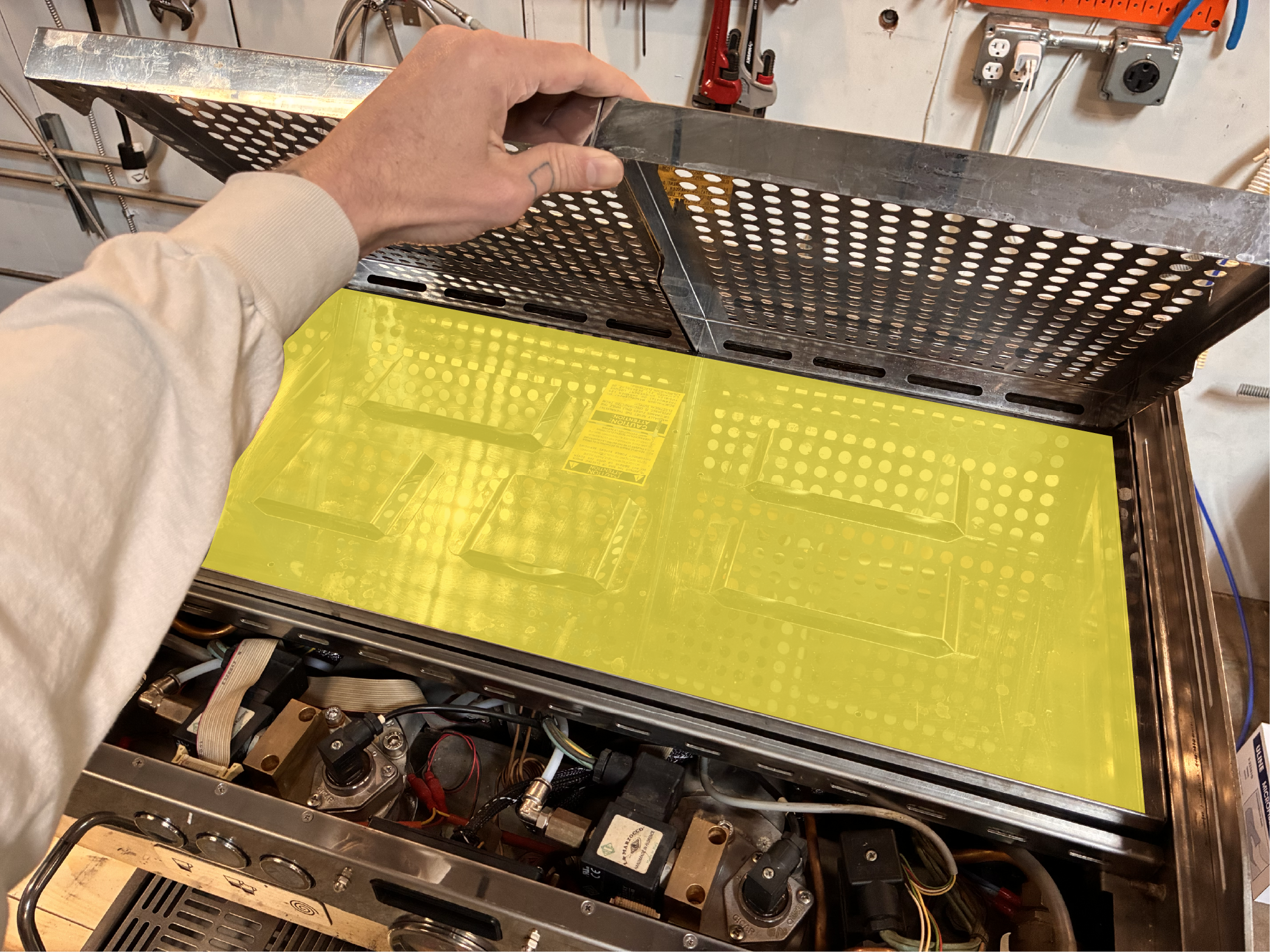

Cup tray liner DOES NOT drain. Excess liquids or accidental spills can accumulate and flood liner (highlighted in yellow below) causing potential Common Issues. Address accidental spills immediately!
Cup Tray Do's & Don'ts
- Do:
- Store dry items such as lids and cups.
- Steam wand towels may be placed... however ensure they're set on a non-permeable surface.
- Routinely discard soaked towels for fresh ones.
- Address spills immediately!
- Always, completely dry cup tray grates & liner after cleaning!
- Don't:
- Store syrups.
- Completely cover with wet towels or rubber mats.
- Place soaked towels.
- Ignore accidental spills.
