Power Switch - Linea PB

Power Switch - Linea PB

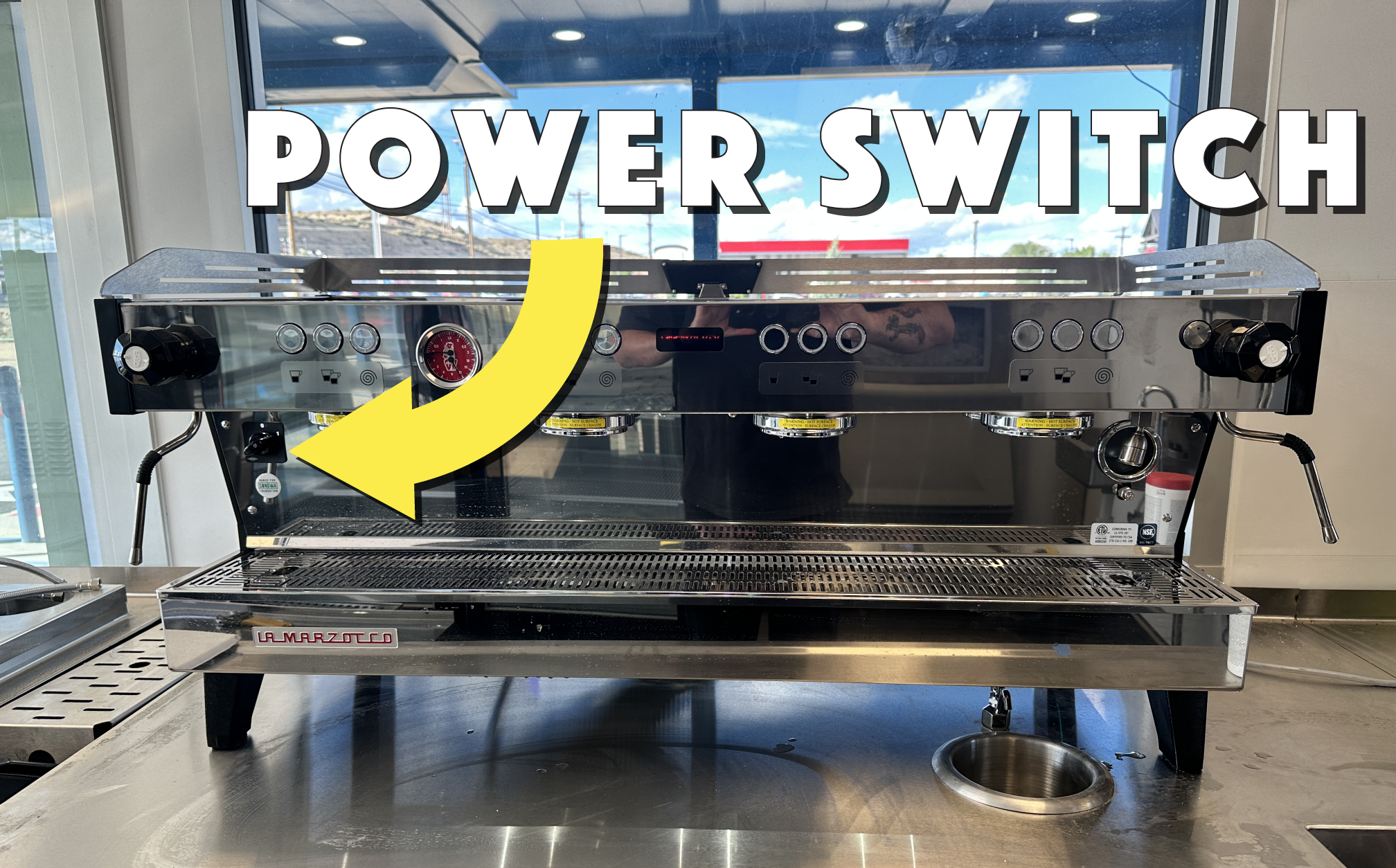

The Linea PB espresso machine features one main power switch located on the recessed front panel just below Group 1.


Idea
Tech Tip! Depending on the age of the machine, there are two types of switches. A single or dual stage switch. Review the differences below!

Single Stage Power Switch
  1. Utilizing two positions 0 & 1. The single stage switch powers ON the espresso machine when rotated to the 1 / ON position.
    1. 0 - OFF
    2. 1 - ON

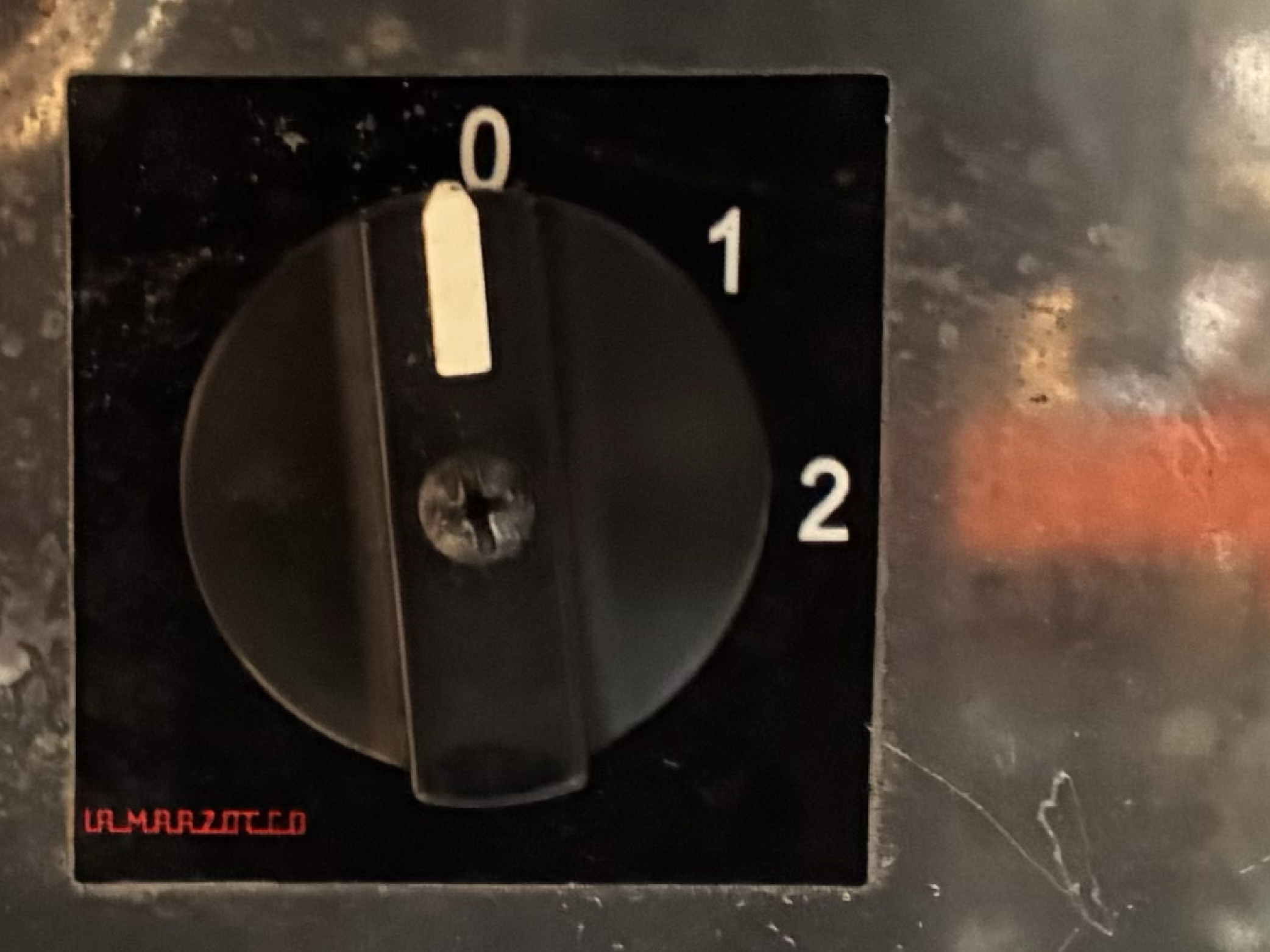

Dual Stage Power Switch
  1. Utilizing three positions 0, 1, & 2. The dual stage switch powers ON the espresso machine's barista dashboard and automatic systems when rotated to the 1 / ON position. Switching to position 2 activates the heating circuit.
    1. 0  / OFF
    2. 1 / ON - Barista Dashboard and Autofill Circuit
    3. 2 / ON - Heating Elements

Troubleshooting:

Alert
If the espresso machine unexpectedly shuts off. The power switch will not automatically rotate to the 0 position. Safely turn power switch OFF (0 position) in the event of a sudden power loss and contact support.
  1. Safely Turn OFF Equipment
  2. Unexpected Espresso Machine Shut Off
